L-SERIES HARNESS ADAPTER

L-SERIES HARNESS ADAPTER

(0 reviews)

Campatible with the following L-Series Switches:

  • L11D1G
  • L11D1E
  • L12D1G
  • L12D1E

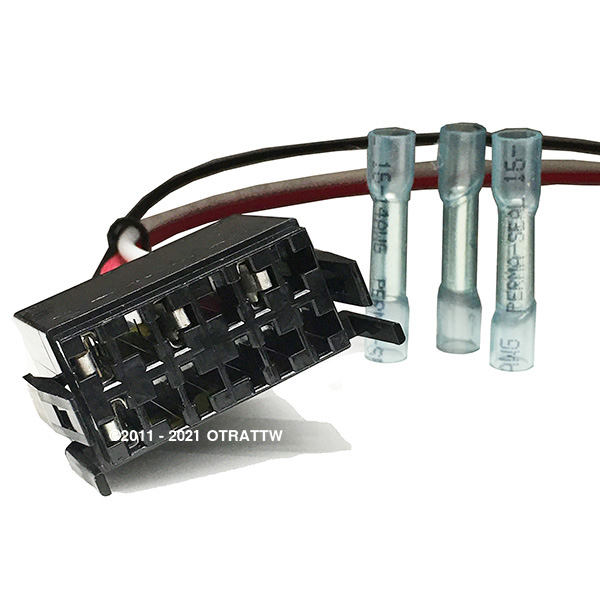

Includes:

  • LC1-01 rear connector housing
  • SAEJ1128-GXL wiring, 12 inches in length
  • Metri-pack 630 series terminals (attached)
  • 3- Molex 19164-0044 Perma-seal butt connectors, heat shrink insulated

Dynatex Dielectric grease optional and recommended.

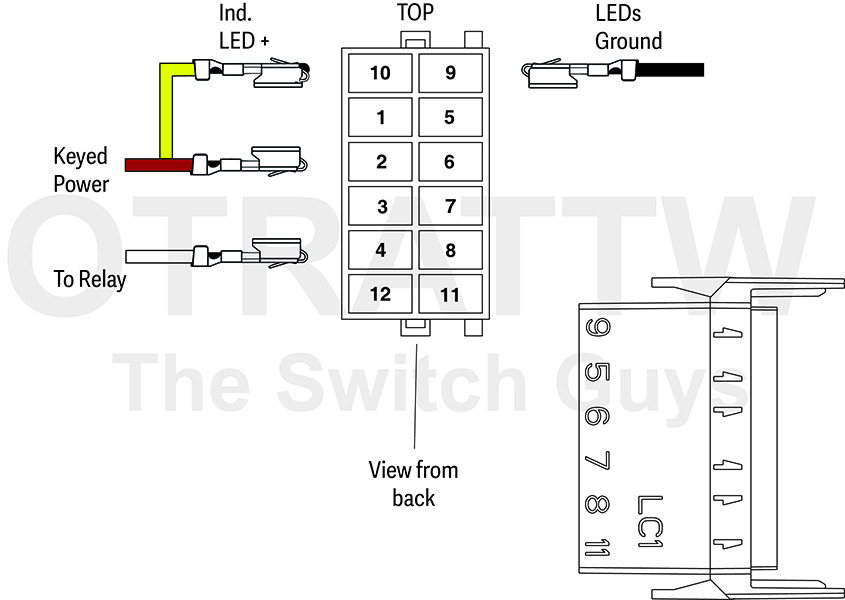

Adapter Diagram

Please note:

Due to the jumper wire between terminal 2 and terminal 10, the LED positive, it is recommended that this harness extension be attached to a wiring harness on a keyed power source.  If attached to a non-keyed source the independent LED will be on constantly, 24 hours a day.



If your wiring harness is to be attached to a constant power source an extension harness can be made without the jumper at an additional cost depending on the length of wire required, email sales@otrattw.com or call 1-408-255-1544.

SKU
L1A-HAR
Our price:
$7.50
