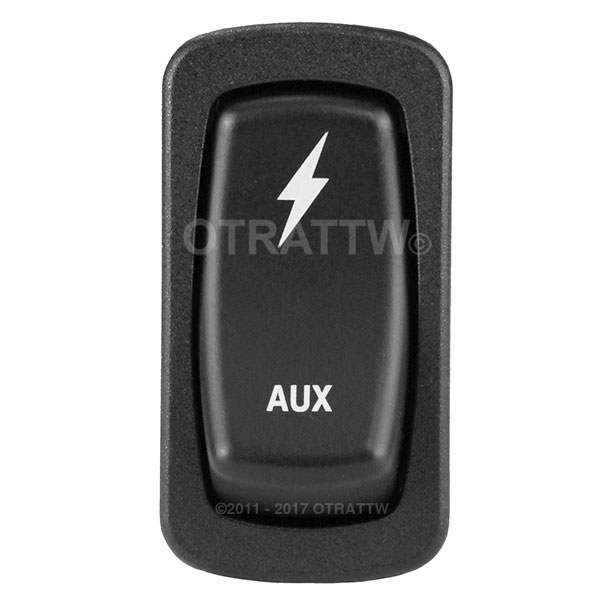

L-SERIES, AUX, LOWER LED INDEPENDENT

L-SERIES, AUX,  LOWER LED INDEPENDENT

(1 reviews)

  • SPST ON/OFF switch.
  • Upper LED is ON when the upper part of the rocker is pressed ON.  This will light up the symbol area.
  • Lower LED is independently wired.  If connected this will light up the text area.
  • Rated 20A 12V
  • No rear barriers between terminals. LC1 housing connectors can be used with Packard 630 terminals.  LC1 connector and terminals are sold separately.
  • Insulated 1/4" female quick disconnect terminals can also be used.  This is a 4 terminal switch with a common ground for both LEDs
  • Optional Dynatex Dielectric Grease Locks out moisture
  • Optional Harness Adapter Click link for info

Custom text: Maximum 2 lines, and 7 letters/spaces per line

SKU
L11GBBM8-500
Our price:
$20.00
  • Details
  • Customers also bought
  • Customer feedback

Seal Protection

  • Locks out elements such as water, dust & debris. Certified to IP67 for front panel components.

Switch mounting

  • Fits into industry standard mounting hole of 1.734 x .867 in [44.0mm x 22.0mm].

Panel Thickness Range

  • Acceptable Panel Thickness

.030 to .156 (.76mm to 3.96mm)

  • Recommended:

.030, .062, .093, .125 and .156

Switch Depth

  • Switch only from base to terminal end - 1.75 inches
  • Switch with LC1-01 attached - 2.38 inches

Switch dimension

  • Base with rocker installed - 1.97 X 1.02 inches
Average customer rating:

(1 reviews)

Only those who bought this product are allowed to add review
If you've already bought this product, please sign in and add your own review!

1 Most useful customer reviews (see all reviews):
Vinny lombardo
Aug 9, 2020
This customer purchased the item at our site.
Perfect. Exactly what I wanted. For a novice like me the pin out sheet included was a big help to visualize the wiring. Installed in my tractor for activating a tow behind sprayer pump.

Advantages: LED is bright enough to see in daylight.
