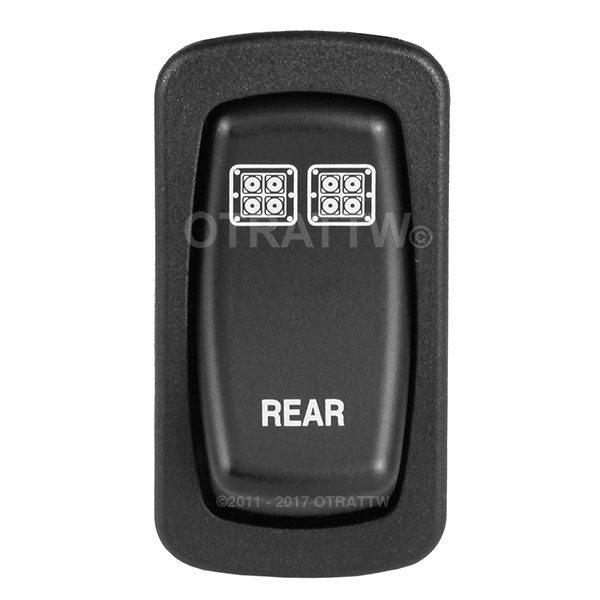

L-SERIES, REAR LIGHTS, LOWER LED INDEPENDENT

L-SERIES, REAR LIGHTS,  LOWER LED INDEPENDENT

(1 reviews)

  • SPST ON/OFF switch.
  • Upper LED is ON when the upper part of the rocker is pressed ON.  This will light up the symbol area.
  • Lower LED is independently wired.  If connected this will light up the text area.
  • Rated 20A 12V
  • No rear barriers between terminals. LC1 housing connectors can be used with Packard 630 terminals.  LC1 connector and terminals are sold separately.
  • Insulated 1/4" female quick disconnect terminals can also be used.  This is a 4 terminal switch with a common ground for both LEDs

Custom text: Maximum 2 lines, and 7 letters/spaces per line

SKU
L1177-54R
Our price:
$18.25
  • Details
  • Customers also bought
  • Customer feedback

Seal Protection

  • Locks out elements such as water, dust & debris. Certified to IP67 for front panel components.

Switch mounting

  • Fits into industry standard mounting hole of 1.734 x .867 in [44.0mm x 22.0mm].

Panel Thickness Range

  • Acceptable Panel Thickness

.030 to .156 (.76mm to 3.96mm)

  • Recommended:

.030, .062, .093, .125 and .156

Switch Depth

  • Switch only from base to terminal end - 1.75 inches
  • Switch with LC1-01 attached - 2.38 inches

Switch dimension

  • Base with rocker installed - 1.97 X 1.02 inches
Average customer rating:

(1 reviews)

Only those who bought this product are allowed to add review
If you've already bought this product, please sign in and add your own review!

1 Most useful customer reviews (see all reviews):
Jacob Wilson
Jul 26, 2018
This customer purchased the item at our site.
Awesome switches, high quality! Fast shipping and very easy to install. Don't like the image on the switch? call them up, they will make you whatever you want!
