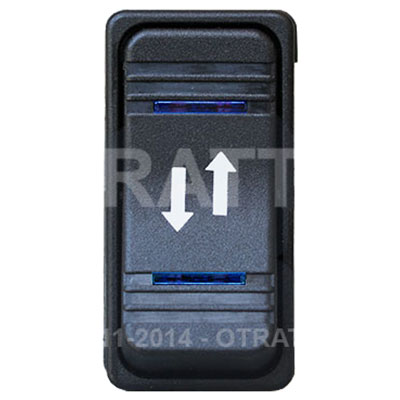

CONTURA X SEALED ROCKER SWITCH BLUE LENS, ARROWS

CONTURA X SEALED ROCKER SWITCH BLUE LENS, ARROWS

(0 reviews)

  • SPDT- Momentary ON/OFF/ON Momentary
  • HH rocker, blue slit lens (up/down arrows, can be used as in/out)
  • Two 18 volt incandescent lights
  • Both incandescent lights are independently wired
  • Rated 20A @ 18Volt
  • No rear barriers between terminals, VCH connnector block with Metri-pack 630 series terminals are recommended
  • Wiring diagram V8D1K
SKU
V8C1K771-1WVAT-100
Weight
0.08 lbs
Our price:
$14.00
  • Details
  • Customers also bought
  • Customer feedback
  • O-Rings installed on the LED and/or the incandescent lights and the center shaft to seal out water, dust, and debris.
  • Certified to IP68 for front panel components of the actual switch only.
  • Sealed switch with optional panel gasket (VPS-CAR) will meet IP67 rating.
  • Switch mounting hole is .830 by 1.45 inches.
  • Panel Thickness Range 0 gaskets - .032, .062, .093, .125, .187, .250 inches; 1 gasket - .030 to .109 & .147 to .157
  • Switch Depth switch only, no rear barrier - 1.479 inches switch only, rear barrier - 1.55 inches
  • Switch with VCH or VC1 connector housing - 2.029 inches
  • Rocker Dimensions: - 1.910 by .960 inches
