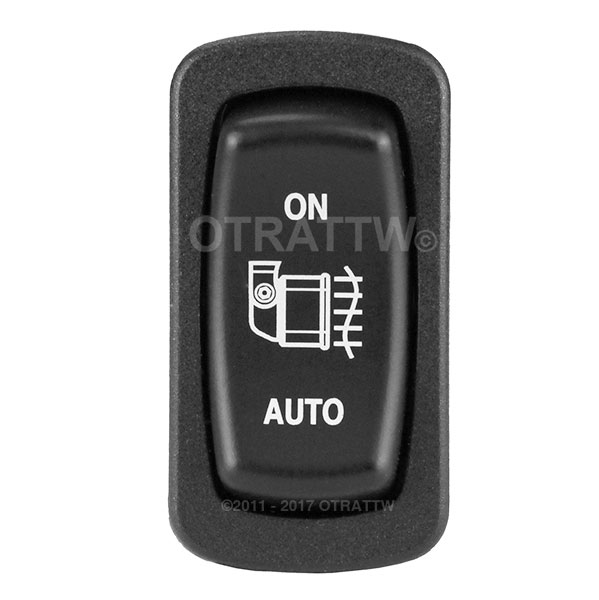

L-SERIES, ON/AUTO LIGHTS,  INDEPENDENT BLUE LEDs

L-SERIES, ON/AUTO LIGHTS, INDEPENDENT BLUE LEDs

  • SPDT ON/OFF/ON switch.
  • Upper and Lower BLUE LEDs are independently wired
  • Rated 20A 12V
  • No rear barriers between terminals. LC1 housing connectors can be used with Packard 630 terminals.  LC1 connector and terminals are sold separately.
  • Insulated 1/4" female quick disconnect terminals can also be used.  This is a 6 terminal switch with a common ground for both LEDs.
  • Wiring diagram




(0 reviews)

Our price: $19.00

SKUL16S2-5MA

Seal Protection

  • Locks out elements such as water, dust & debris. Certified to IP67 for front panel components.

Switch mounting

  • Fits into industry standard mounting hole of 1.734 x .867 in [44.0mm x 22.0mm].

Panel Thickness Range

  • Acceptable Panel Thickness

.030 to .156 (.76mm to 3.96mm)

  • Recommended:

.030, .062, .093, .125 and .156

Switch Depth

  • Switch only from base to terminal end - 1.75 inches
  • Switch with LC1-01 attached - 2.38 inches

Switch dimension

  • Base with rocker installed - 1.97 X 1.02 inches
