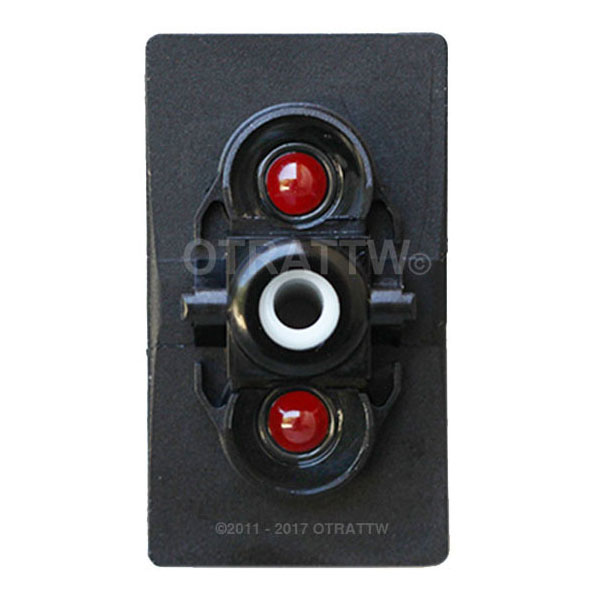

CONTURA V, RED/DAYLIGHT BRIGHT RED LEDS, UPPER LED INDEPENDENT

CONTURA V, RED/DAYLIGHT BRIGHT RED LEDS, UPPER LED INDEPENDENT

(0 reviews)

  • SPST ON/OFF switch.
  • Red/Daylight Bright Red LEDs
  • Upper RED LED is independently wired.  If connected to a dash or ignition circuit this will light up the top area.
  • Lower DAYLIGHT BRIGHT RED LED is ON when the upper part of the rocker is pressed ON.  This will light up the bottom area.
  • Rated 20A 12V
  • No rear barriers between terminals. VCH housing connectors can be used with Packard 630 terminals.  VCH connector and terminals are sold separately.
  • Insulated 1/4" female quick disconnect terminals can also be used.  This is a 5 terminal switch
  • Optional VPS-01
  • Wiring diagram
  • Compatible with CONTURA V and CONTURA XIV rockers
SKU
V1D1FCTB
Our price:
$10.00
  • Details
  • Customers also bought
  • Customer feedback

O-Rings installed on the LED and/or the incandescent lights and the center shaft to seal out water, dust, and debris.  Certified to IP68 for front panel components of the actual switch only.  Sealed switch with optional panel gasket (VPS-CAR) will meet IP67 rating.

Switch mounting hole is .830 by 1.45 inches.

Panel Thickness Range

  • 0 gaskets - .032, .062, .093, .125, .187, .250 inches
  • 1 gasket - .030 to .109 & .147 to .157

Switch Depth

Rocker Dimensions

Environmental:

Sealing                        Sealed version: IP66/68, this rating applies to front panel components of the actual switch only, and signifies complete protection against dust as well as powerful jets of water.



Corrosion                     Mixed Flowing Gas (MFG) Class III 3 year accelerated exposure per ASTM B-827, B-845 Silver and gold contacts



Operating Temp.          -40°C to +85°C



Vibration 1                   Per Mil-Std 202F, Method 204D Test Condition A 0.06 DA or 10G’s 10-500 Hz. Tested with VCH connector. Test criteria - No loss of circuit during test, pre and post test contact resistance.



Vibration 2                   Resonance search 24-50 Hz 0.40 DA

                                     50-2000 Hz ±10 G’s peak Horizontal Axis 3-5 G’s max. Random

                                     24 Hz 0.06 PSD-Gsq/Hz

                                     60 Hz 0.50

                                     100 Hz 0.50

                                     200 Hz 0.025

                                     2000 Hz 0.025

                                     No loss of circuit during test; <10μ seconds chatter.



Shock                           Per Mil-Std 202F, Method 213B, Test Condition K @ 30G’s. Tested with VCH connector. Test criteria - No loss of circuit during test, pre and post test contact resistance.



Salt Spray                    Per Mil-Std 202F, Method 101D, Test Condition A, 96 Hrs. Sealed version only.



Dust                             Mil STD 810, Method 510.2 Air Velocity 300 Ft/Min Duration 16Hr



Thermal Shock            Per Mil-Std 202F, Method 107F, Test Cond. A, -55°C to +85°C. Test criteria - pre and post test contact resistance



Moisture Resistance   Per Mil-Std 202F, Method 106F, Test Criteria - pre and post test contact resistance



Ignition Protection      All Contura switches with sealed construction meet the requirements of UL1500/ISO8846 for ignition protection, in addition to conformance with EC directive 94/25/EC for marine products.
