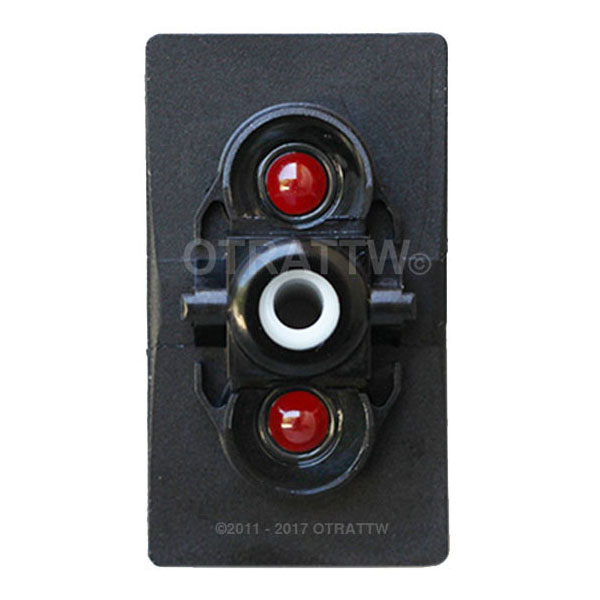

V-SERIES SEALED ROCKER SWITCH, RED LEDS, BODY ONLY, NO ROCKER

V-SERIES SEALED ROCKER SWITCH, RED LEDS, BODY ONLY, NO ROCKER

  • DPDT ON/OFF/ON switch.
  • Two RED LED lights.
  • Lights are wired to be ON depending on the position of the switch. If pressed down for lower "ON" lower light will also be ON.
  • Upper light is ON when upper part of the rocker is pressed down, or ON.
  • No rear barrier between the terminals.  Recommend using insulated terminals or VCH connector housing
  • Rated 20A @12V.
  • Wiring diagram

Our price: $14.00

SKUVJD1DCCB-00000-000

O-Rings installed on the LED and/or the incandescent lights and the center shaft to seal out water, dust, and debris.  Certified to IP68 for front panel components of the actual switch only.  Sealed switch with optional panel gasket (VPS-CAR) will meet IP67 rating.

Switch mounting hole is .830 by 1.45 inches.

Panel Thickness Range

  • 0 gaskets - .032, .062, .093, .125, .187, .250 inches
  • 1 gasket - .030 to .109 & .147 to .157

Switch Depth

Rocker Dimensions
