V-SERIES SEALED ROCKER SWITCH, BODY ONLY, NO ROCKER

V-SERIES SEALED ROCKER SWITCH, BODY ONLY, NO ROCKER

  • DPDT momentary ON/OFF/ON momentary switch.

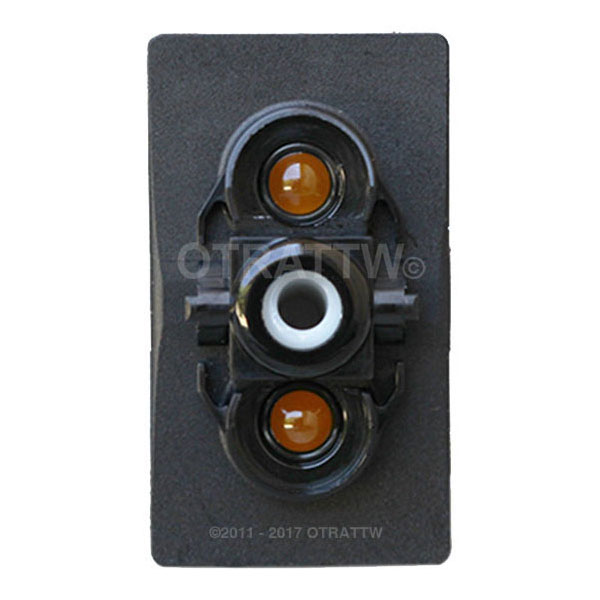

  • Two independently wired AMBER LEDs
  • Rated 20A 12V
  • Brass jumper between terminals #2 & 5 (non-removable)
  • No rear barriers between terminals. VC1 housing connectors can be used with Packard 630 terminals.  VC1 connector and terminals are sold separately.

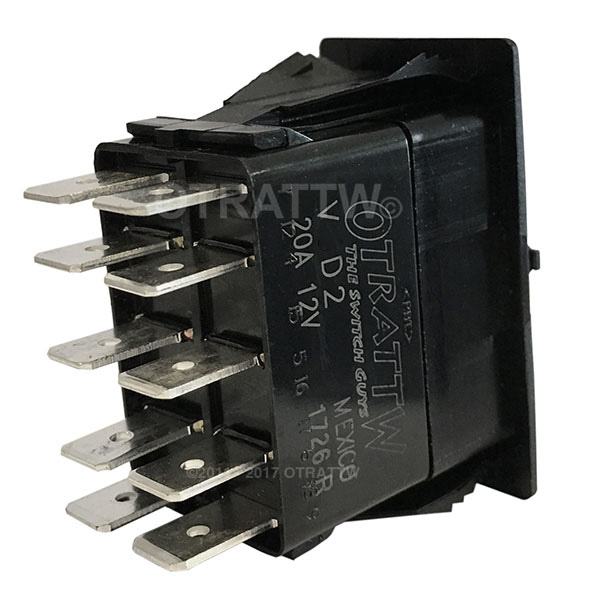

  • 1/4" male spade terminals on back of switch
  • Insulated 1/4" female quick disconnect terminals can also be used.  This is a 10 terminal switch
  • Wiring diagram

Our price: $14.50

SKUVLDKUNNB-00000-000

O-Rings installed on the LED and/or the incandescent lights and the center shaft to seal out water, dust, and debris.  Certified to IP68 for front panel components of the actual switch only.  Sealed switch with optional panel gasket (VPS-CAR) will meet IP67 rating.

Switch mounting hole is .830 by 1.45 inches.

Panel Thickness Range

  • 0 gaskets - .032, .062, .093, .125, .187, .250 inches
  • 1 gasket - .030 to .109 & .147 to .157

Switch Depth

Rocker Dimensions
