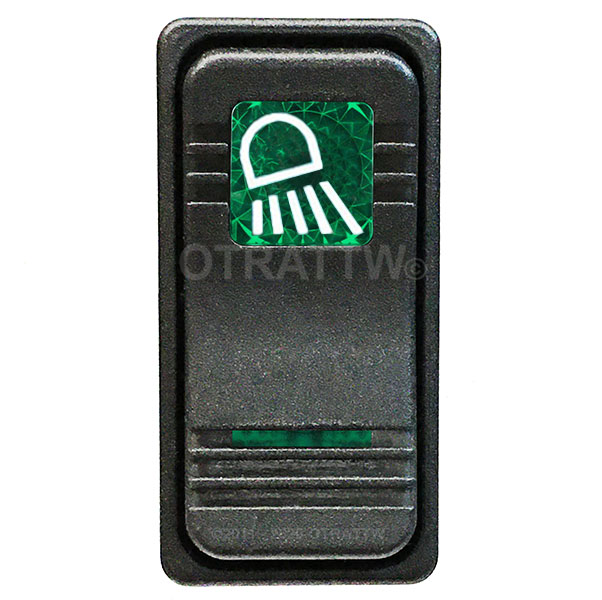

CONTURA X SEALED ROCKER SWITCH GREEN LENS, WORK LIGHT

SPST OFF/ON
Two incandescent lights
Top light ON when the switch is turned ON
Bottom light independently wired
Rated 20A @ 18Volt
No rear barriers between terminals, VCH connnector block with Metri-pack 630 series terminals are recommended
1/4" Insulated quick connect terminals can also be used
Wiring diagram (V1D1JXXB)

		(0 reviews)

Our price: $13.00

Quantity

SKU	V1C1J771-1KJ58-100
Notify me when this item is back in stock Notify me when this item is nearly out of stock

O-Rings installed on the LED and/or the incandescent lights and the center shaft to seal out water, dust, and debris.
Certified to IP68 for front panel components of the actual switch only.
Sealed switch with optional panel gasket (VPS-CAR) will meet IP67 rating.
Switch mounting hole is .830 by 1.45 inches.
Panel Thickness Range 0 gaskets - .032, .062, .093, .125, .187, .250 inches; 1 gasket - .030 to .109 & .147 to .157
Switch Depth switch only, no rear barrier - 1.479 inches switch only, rear barrier - 1.55 inches
Switch with VCH or VC1 connector housing - 2.029 inches
Rocker Dimensions: - 1.910 by .960 inches
